ECC200_L07 series | 7 inchescolorwalkie-talkie【Indoor walkie-talkie】Large screen display □ Sensitive touch key design □ Support photo/video mode □ Support access control electric lock to open the door

Description

Product Specifications

Product Features

  • minimalist industrial design
  • Thin and light profile, saving space
  • 7" capacitive touch screen with power saving mode
  • Two-way HD audio and video intercom
  • SIP compliant for easy integration into every SIP-enabled PBX
  • Support external power supply or PoE power supply
  • Support GB 86 cassette installation, easy installation

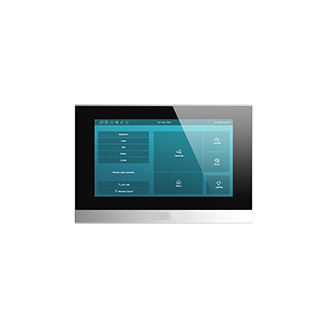

Smart_Home_7_Linux_Indoor_Monitor_Model_C313_Series-01
ECC200_L07 7-inch indoor walkie-talkie

Hardware Specifications

  • Appearance material: plastic
  • RAM/ROM: 64MB/128MB
  • Display: 7" TFT LCD
  • Screen: 7-inch capacitive touch screen
  • RS485 port: 1
  • Relay output port: 1
  • Doorbell input port: 1
  • Zone input ports: 8
  • Microphone: -58dB
  • Speaker: 4Ω/2W
  • Ethernet port: 2xRJ45, 10/100Mbps self-adjusting
  • Support 802.3af standard Power over Ethernet
  • Support 12V DC power adapter (not using PoE state)
  • Installation method: wall mount or desktop mount
  • Mechanical size: 200.2×132.2×27.2mm
  • Working humidity: 10~90%
  • Operating temperature: -10°C ~ +45°C
  • Storage temperature: -20°C ~ +70°C

touch screen

  • Display Mode: Transmissive
  • LCD size: 7 inches (diagonal)
  • Resolution: 800×480
  • Contrast: 500:1
  • Brightness: 220 cd/m²
  • Viewing angle: 50° left, 50° right, 40° up, 50° down
  • Touch Screen: Projected Capacitive Touch

Audio

  • Support SIP v1 (RFC2543), SIP v2 (RFC3261)
  • Narrowband Audio Transcoders: G.711a, G.711μ, G.729
  • Broadband Audio Transcoder: G.722
  • DTMF: Out-of-band DTMF (RFC2833), SIP information
  • Echo Cancellation

video

  • Video Streaming Format: H.264

network

  • Protocols supported: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Deployment and Maintenance

  • Automatic configuration
  • Interface: Web Management Portal
  • Web-based package dump
  • Configuration backup/restore
  • Firmware upgrade
  • System log (including door opening record)

Application scenarios

  • Detached villa
  • through the sky
  • Apartment building
  • collective housing complex
  • Smart Home System
  • Smart interior decoration

What is building intercom

building intercom, an internal communication system used in residential buildings. Its main purpose is to control the electric lock on the door outside the building. After confirming the identity of the visitor through the remote intercom, the electric lock can be opened remotely to allow the visitor to enter the residential building. So, from a home security perspective, it's a "guest admission system" implemented using technology similar to a phone system. Its basic composition is an indoor extension and a door host.

The door host is provided for the use of external visitors. The visitor dials the indoor unit by pressing the keyboard of the host, and the indoor unit rings to remind the owner that there is a visitor. The indoor user is like using a telephone, and he/she lifts the phone to talk. During the call, press the indoor unit. The unlock button on the remote control opens the door electric lock. And now the building intercom has developed to a higher level of application, such as calling other hosts, calling security has played a role in joint defense. Moreover, the indoor unit function is extended to small conferences and the function of communicating with households (that is, neighbors can talk to each other in the networked community). That is to say, the current building intercom has combined the application of residential security and life intelligence. For more functions, please refer to some building intercom manufacturers. Such as China Wenzhou Weishilong, Fujian Guanlin, some companies in Guangzhou. They all have their different characteristics, so building intercom is not a simple application of VTO calling the indoor unit and the indoor unit making a response.

Weak current engineering related technologies for smart buildings
Housing|Construction Company Achievements
What is a smart home? You must understand 5 application layers and smart home devices.
What does light current engineering do?
Smart residential system and its application in the field of interior design
Don't forget to plan for weak current equipment in home decoration!







Additional information

Application

Building

Types of

central monitoring, control panel, cloud

Platform

APP, PC, PC+APP
